Discovery Page

The Discovery page is the first page in the bottom navigation bar and opens by default when the app starts. It is where you find, configure, and manage KNX IP gateways to connect to. It has three tabs: Discover, Config, and Security.

Discover Tab

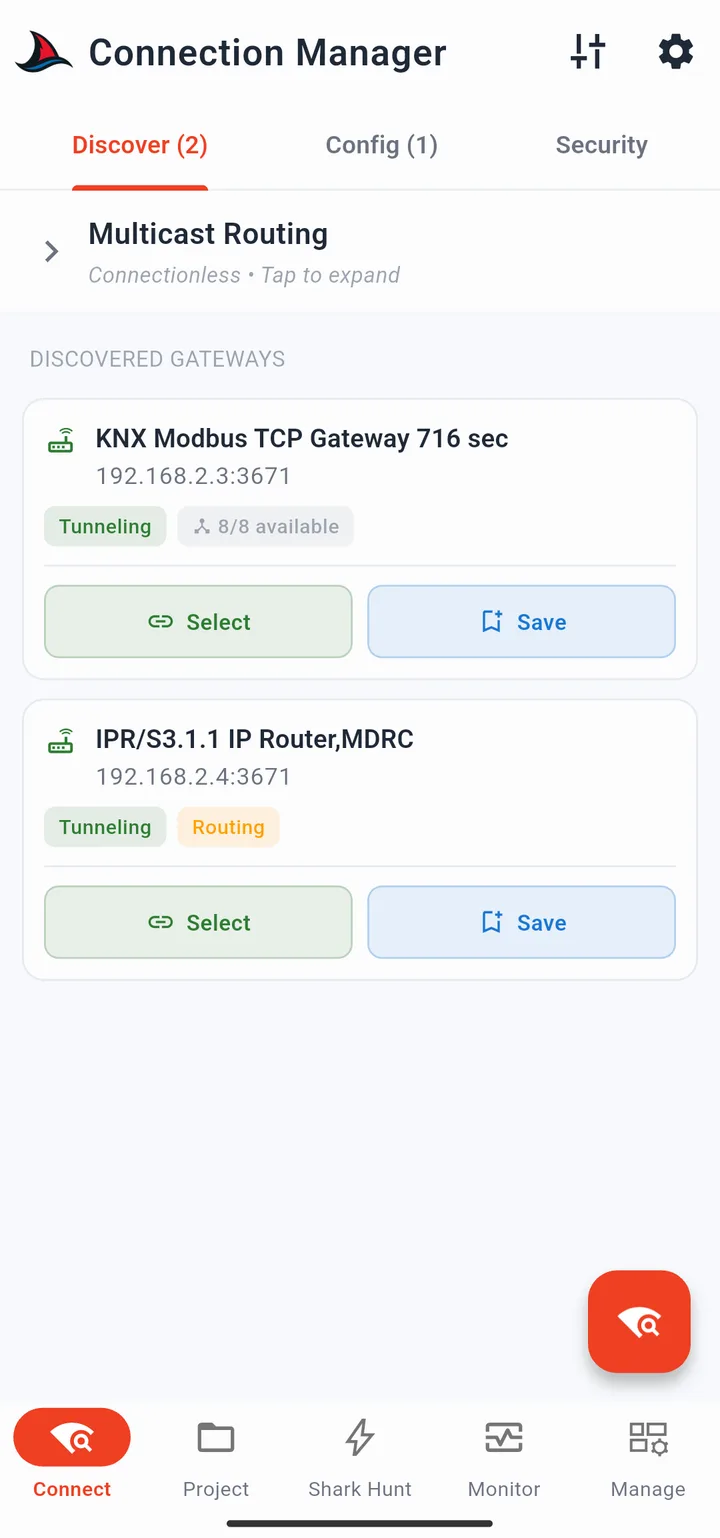

Tap the scan FAB to begin searching the local network for KNX IP devices. The app sends KNX IP search requests and lists any responding devices as cards.

Gateway Cards

Each discovered gateway card shows:

• Gateway name (as advertised by the device)
• IP address and tunnel port

Two buttons are on each card:

Select - marks this gateway as the active connection target. The gateway moves to the Last Selected Gateway section at the top of the page and is remembered across app restarts. Selecting a gateway does not immediately connect to it; the app connects automatically when you perform an action (start the monitor, send a command, etc.).

Save - saves the gateway to the Config tab so it can be reused without rediscovering. Useful when you visit the same installation regularly.

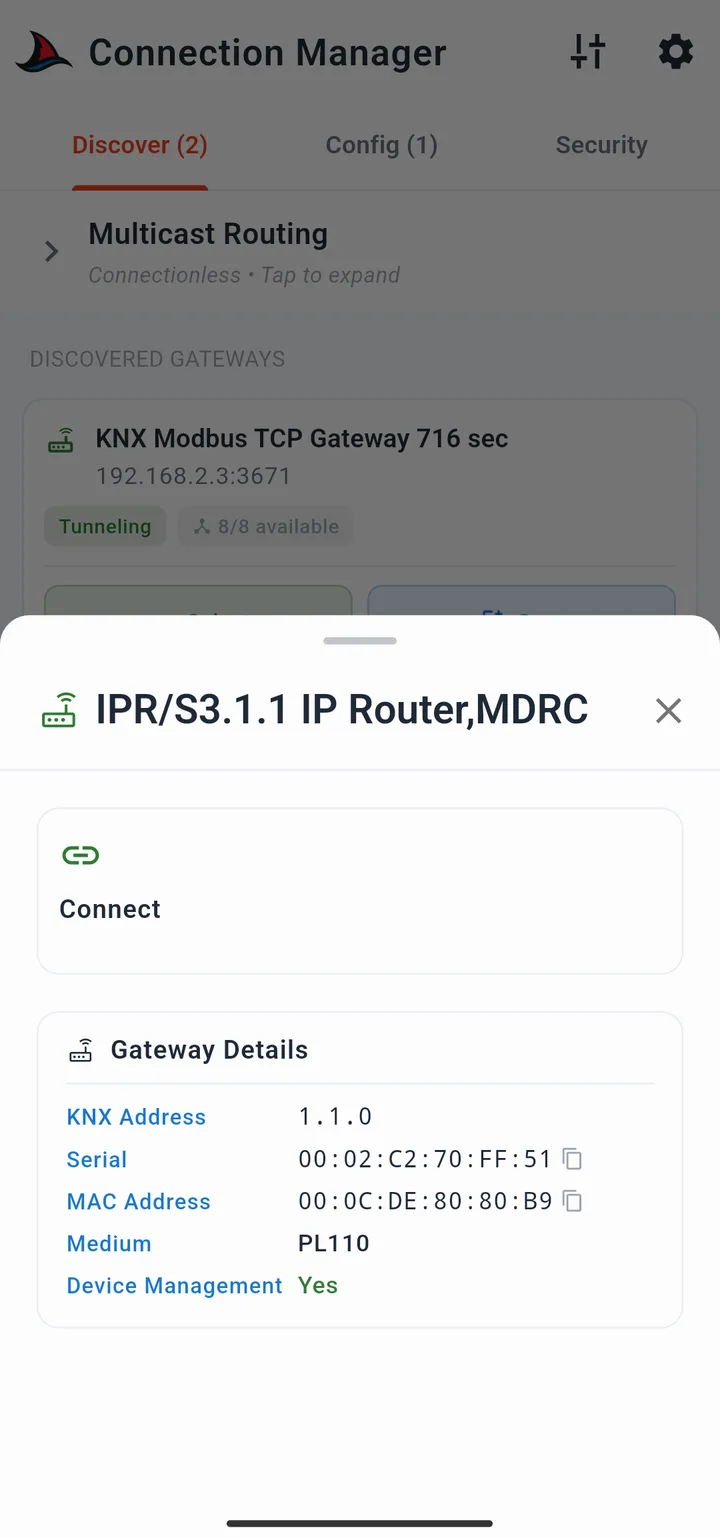

Tapping a card (not a button) opens the gateway detail sheet:

• KNX individual address
• Serial number
• MAC address
• Medium type
• Device management capabilities (if supported)
• Connect button - connects immediately; useful for testing reachability, though not required for normal operation
• Load Credentials button (KNX IP Secure gateways only) - loads .knxkeys or .knxproj credentials for this gateway. See KNX IP Secure.

Last Selected Gateway

If a gateway has previously been selected, it appears in a pinned section at the top of the Discover tab. It is automatically re-selected on app restart so you can start working without scanning again.

Multicast Section

If a KNX IP Router with routing capabilities is discovered, a Multicast section appears below the card list. Expanding it shows two options:

• Multicast - standard KNX IP multicast on 224.0.23.12:3671
• Secure Multicast - encrypted multicast requiring a backbone key (see KNX IP Secure)

Select either option to use it as your connection type instead of a unicast tunnel.

Config Tab

The Config tab stores gateways you have saved manually or via the Save button in the Discover tab. Gateways here are available at any time without needing to scan.

Adding a Gateway Manually

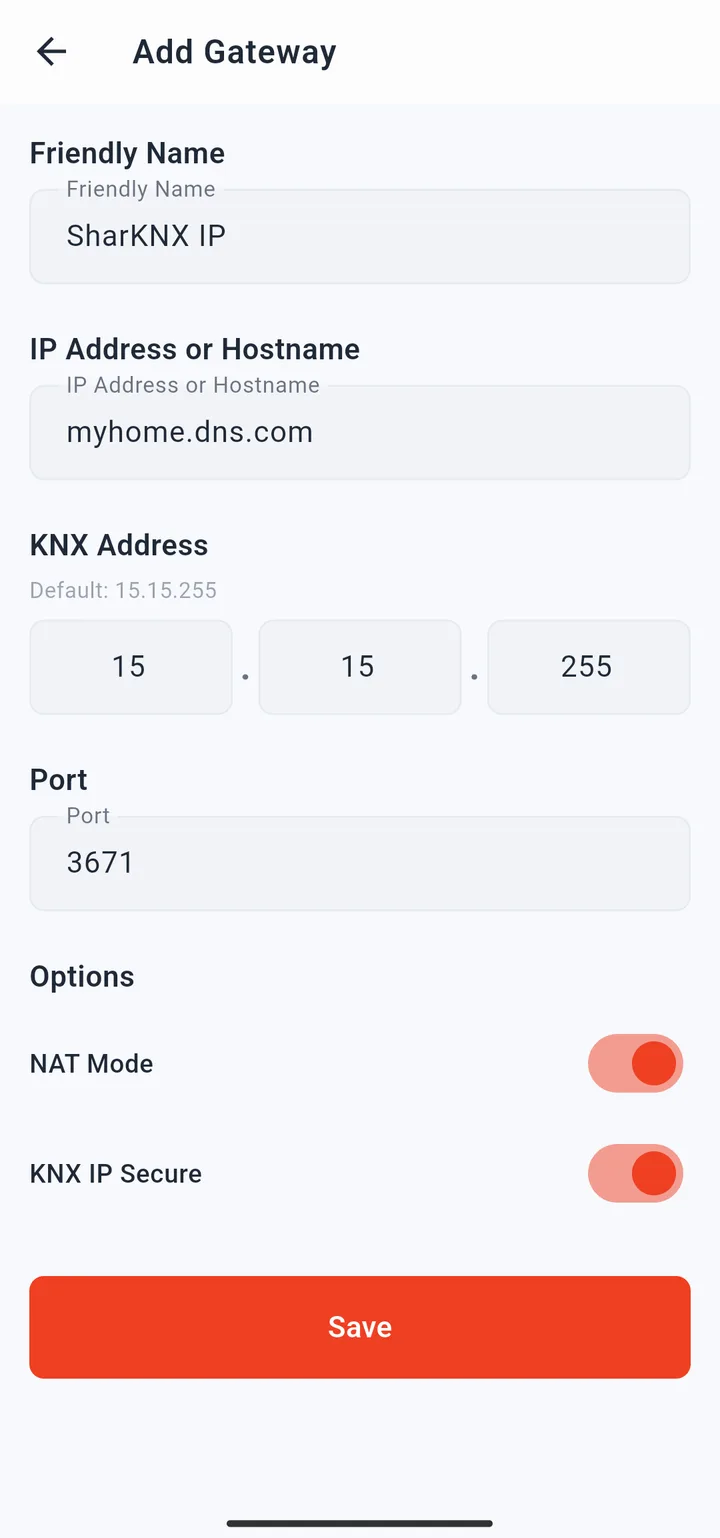

Tap the "+" FAB to open the manual gateway configuration page. Fill in:

Tap Save to create the entry. The gateway appears as a card in the Config tab.

Config Gateway Cards

Cards in the Config tab work identically to Discover tab cards (Select, Save, detail sheet) with one addition: an Edit button that reopens the configuration page so you can correct or update any field without deleting and recreating the entry.

The Config tab holds a maximum of 50 saved gateways.

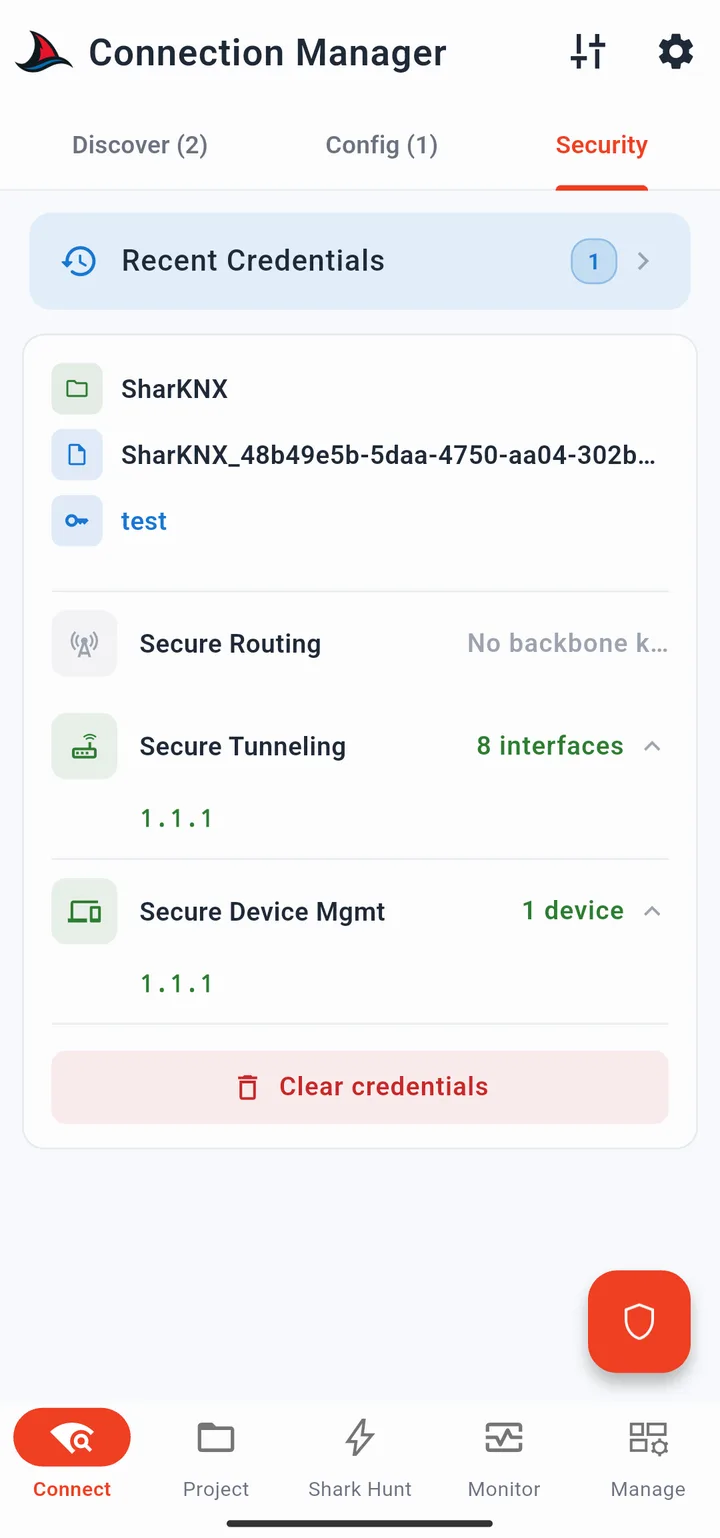

Security Tab

The Security tab is where you load KNX IP Secure and KNX Data Secure credentials that apply across the whole app.

Tap the shield FAB to open the credential import sheet. Three input methods are available:

After loading, the tab displays a summary:

• How many KNX IP interfaces were found in the file
• How many KNX Data Secure devices (by individual address) were present

A History button at the top lets you quickly reload recently used credential files without browsing the file system again.

Tool keys: A .knxkeys file may also contain tool keys for KNX Data Secure devices. If present, SharKNX stores them automatically to enable encrypted device management operations (toggle programming mode, read device info, etc.). See KNX Data Secure.

Tune Menu

The tune icon in the top bar opens a bottom sheet with quick access to credential loading without navigating to the Security tab:

• Load credentials from .knxkeys - opens the file picker for a .knxkeys file
• Load credentials from .knxproj - opens the file picker for a .knxproj file
